产地：德国   沙尔曼  SCHARMANN

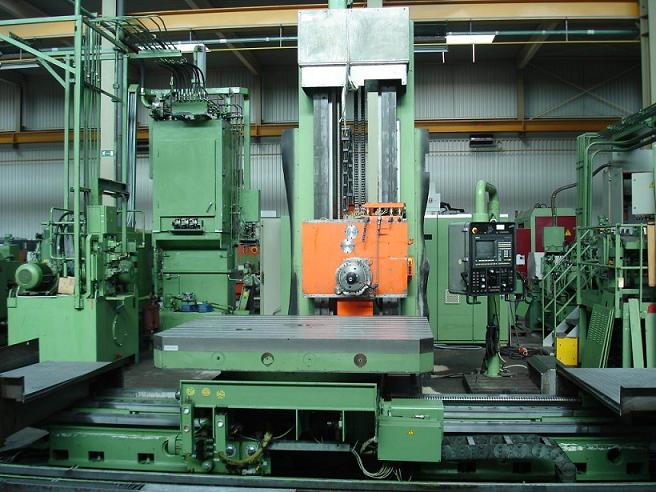

名称：卧式加工中心/CNC

年代：1991年

spindle  diameter                                             125  mm

x-travel                                                           2500  mm

y-travel                                                           1600  mm

z-travel                                                           1000mm

w-axis (spindle longitudinal)                             600   mm

max workpiece weight                                     12000  kg

distance  work spindle/surface of  the table      1600  mm

spindle  taper lSO                                             50

feed                                                                 1-12000mm/min

spindle turning  speed range                             12-3000 U/min

spindle motor                                                   40      kw

table-size                                                        1600X2000 mm

weight of  the  machine ca                                35  t

dimensions  of  the  machine  ca                      8.2X702X404   m
