详细信息：

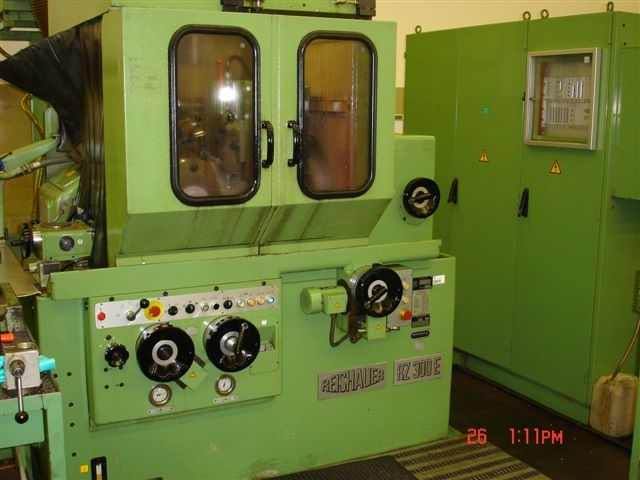

产地：瑞士莱森豪尔磨齿机

年代：1991年

max wheel diameter    /加工 直径                       300     mm

gear width                  / 齿宽                             180      mm

max module                  / 模数                              5

min module                                                      0.5

root circle diameter                                          10       mm

clamping length                                               145-420 mm

workpiece weight                                                               60              kg

number of  teeth                                                                 7 - 256

pressure angle                                                                    14.5-30      .

max. helix angle                                                                  45  .

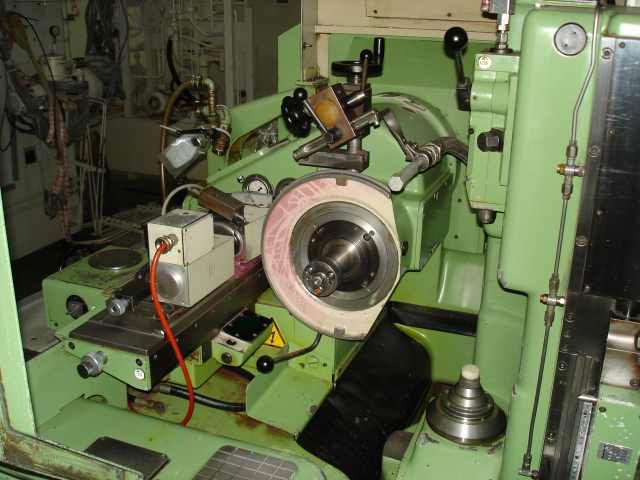

speeds of grinding worm                                               1100 -  1900         U/min

infeed per donuble stroke                                              0.01 -0.08           mm

main gear box  motor                                                      4    kw

total   power requirement                                               6   kw

weigt  of  the  machine  ca                                             4.6   t

dimensions  of  the  machine  ca                                   4.5X5.1X2.1  m
