产地：美国 / 英格索尔 INGERSOLL

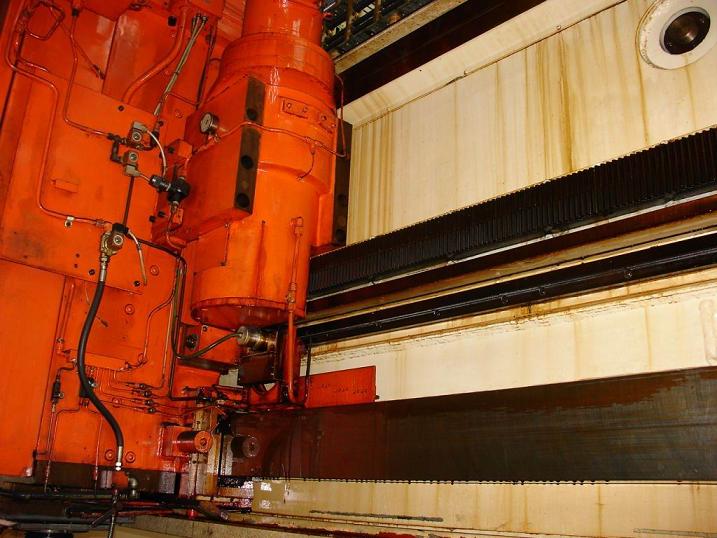

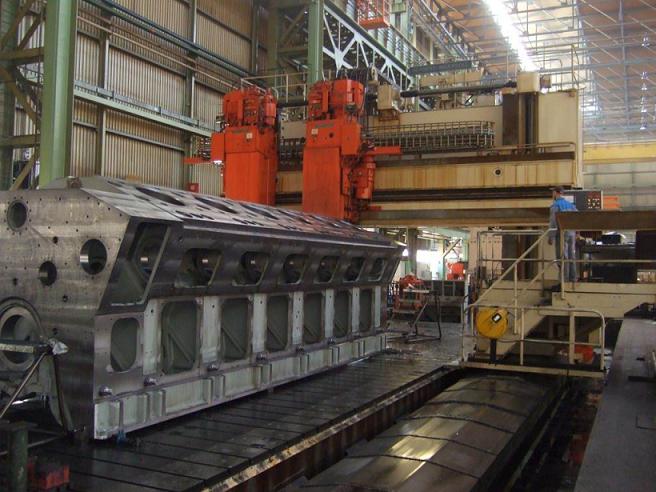

产品名称：数控龙门镗铣（龙门移动）

系统：西门子 SIEMENS  840 C

年代：1995年

x-travel                                                          16500  mm

y-travel                                                            6000  mm

z-travel                                                            600   mm

w-axis                                                            2915  mm

surface  area                                              16460X4875 mm

table load                                                          200   t

distance between  columns                             5590   mm

distance table-lower edge spindle               45-3580  mm

spindle diameter                                              152   mm

spindle  motor                                                 30    kw

spindle  taper l SO                                           50

spindle turning speed range                         25-600  U/min

total  power requirement                                            kw

weight of the  machine ca                                   300   t

dimensions of the machine ca                                      m
